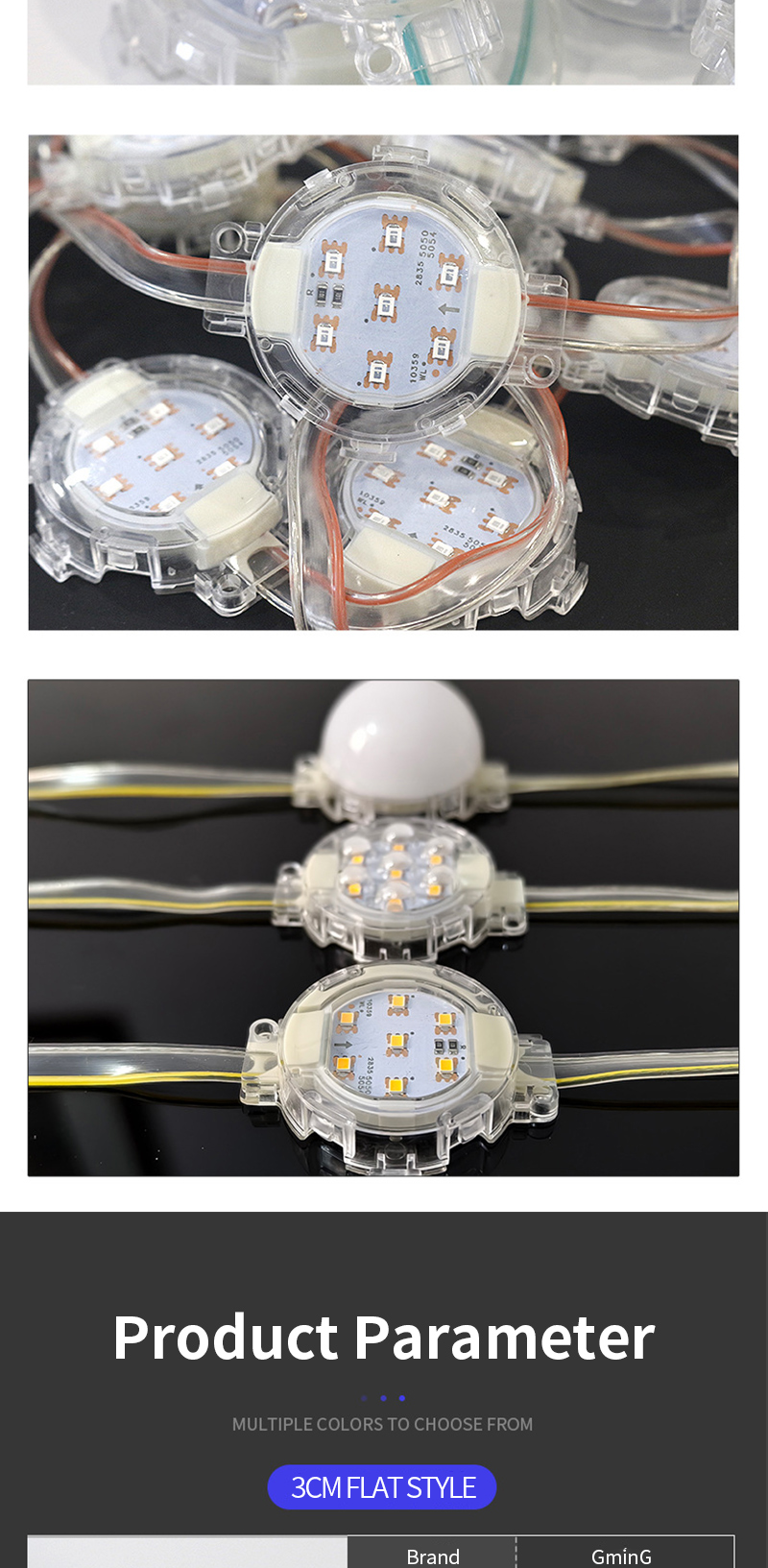

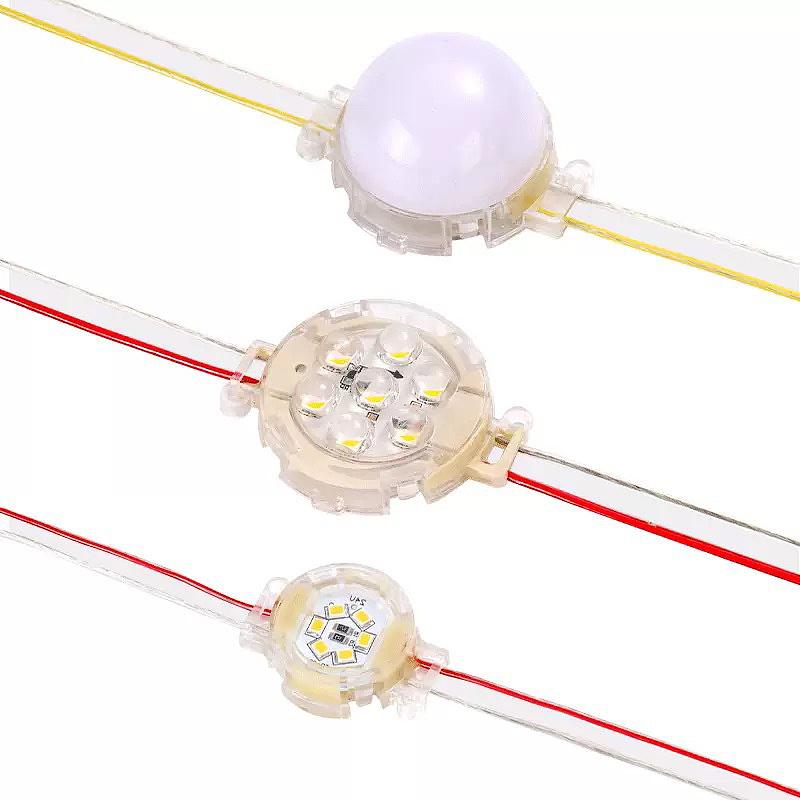

IP68 RGB Pixel Light – Rain-proof, Freeze-proof & Sun-proof

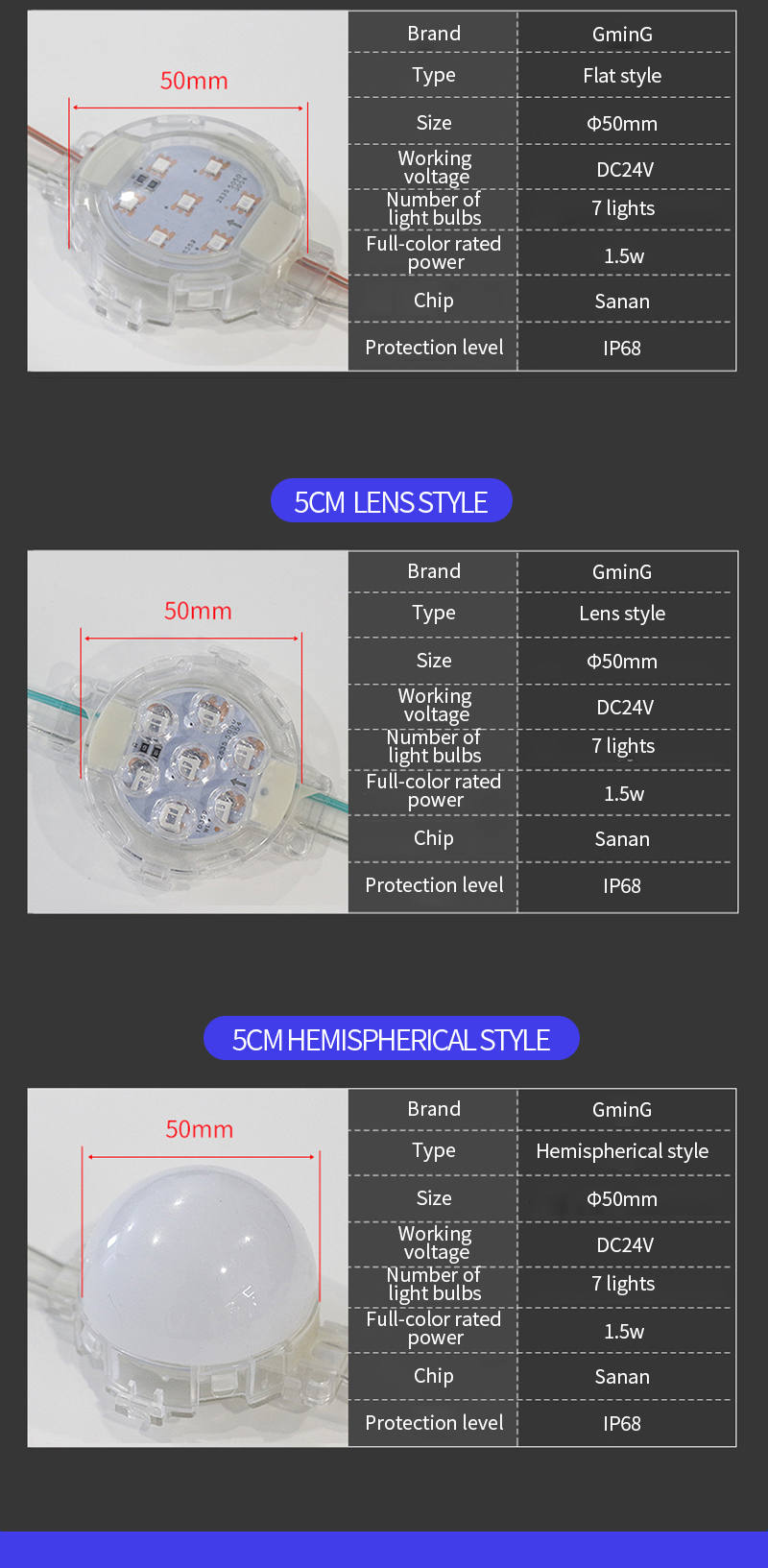

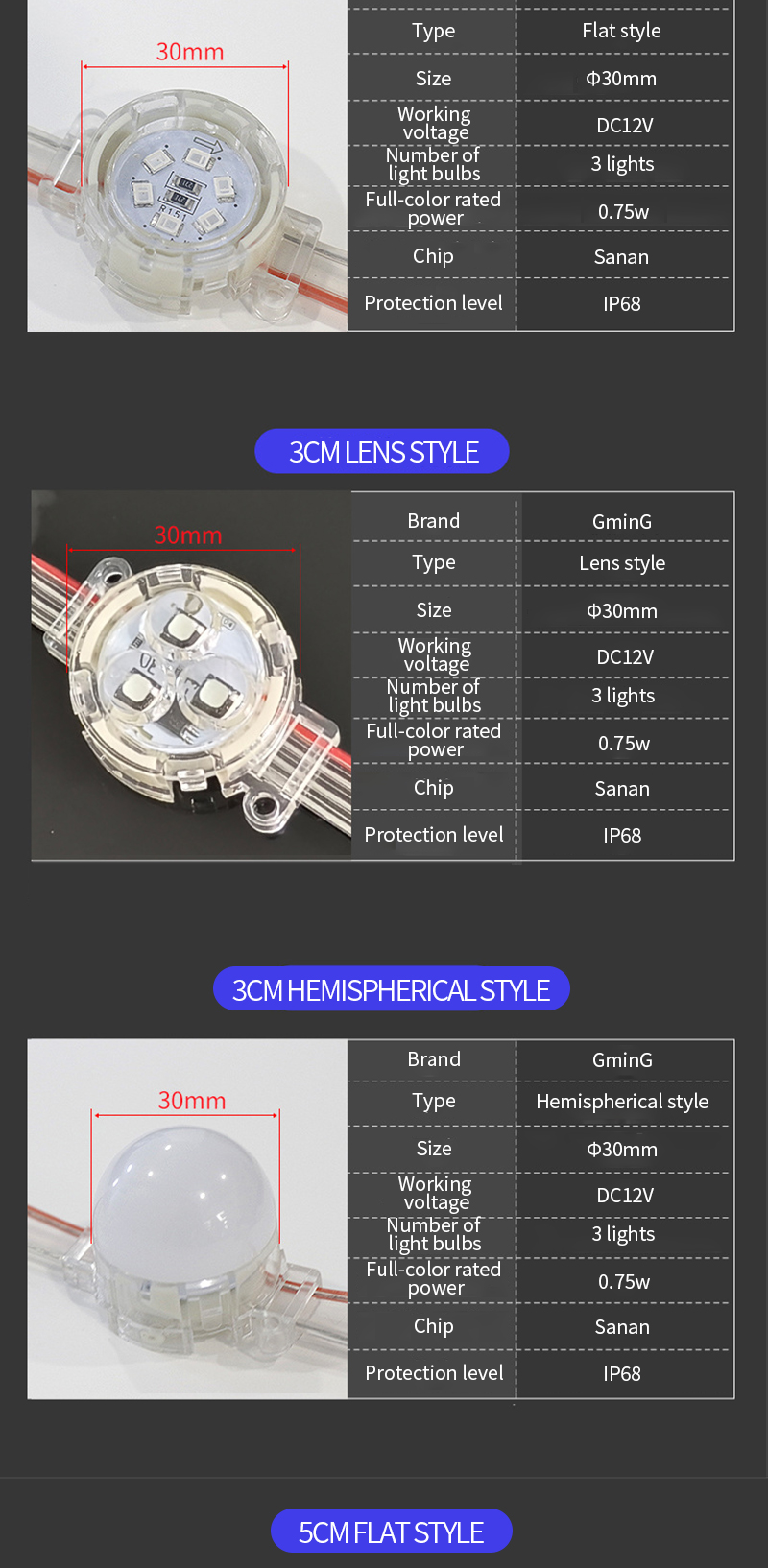

Technical Specifications:

Application Scenario:

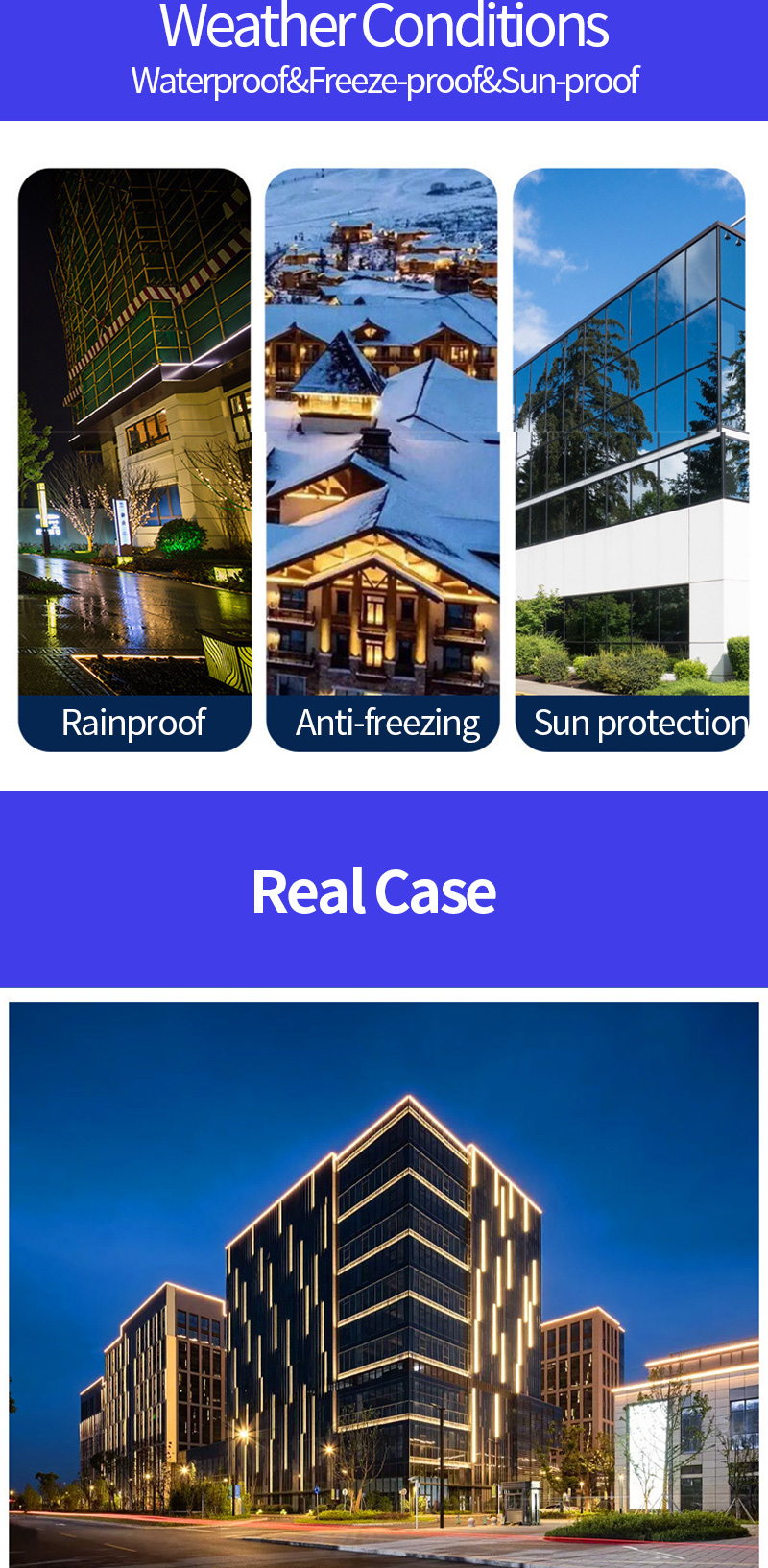

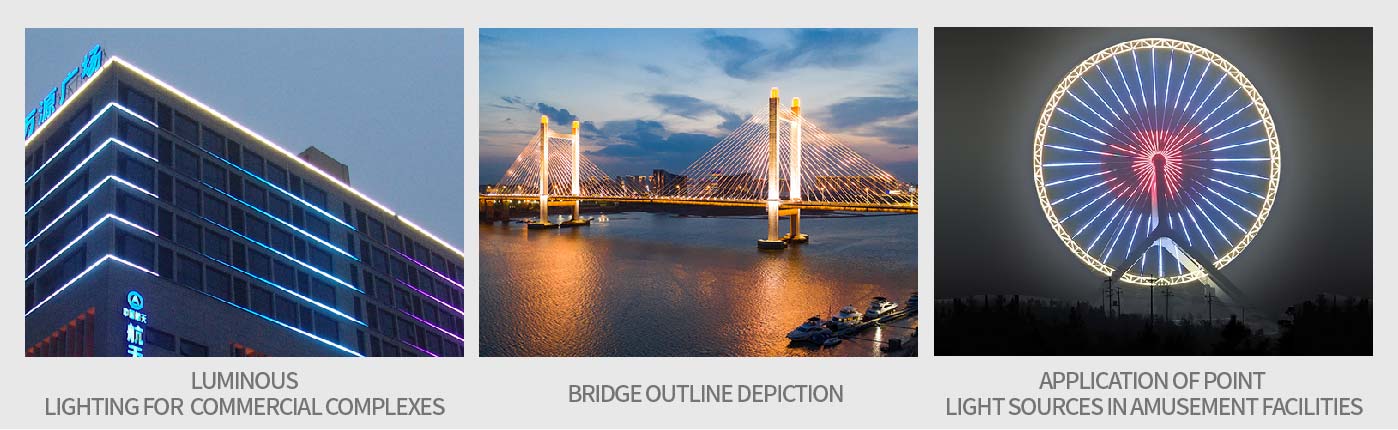

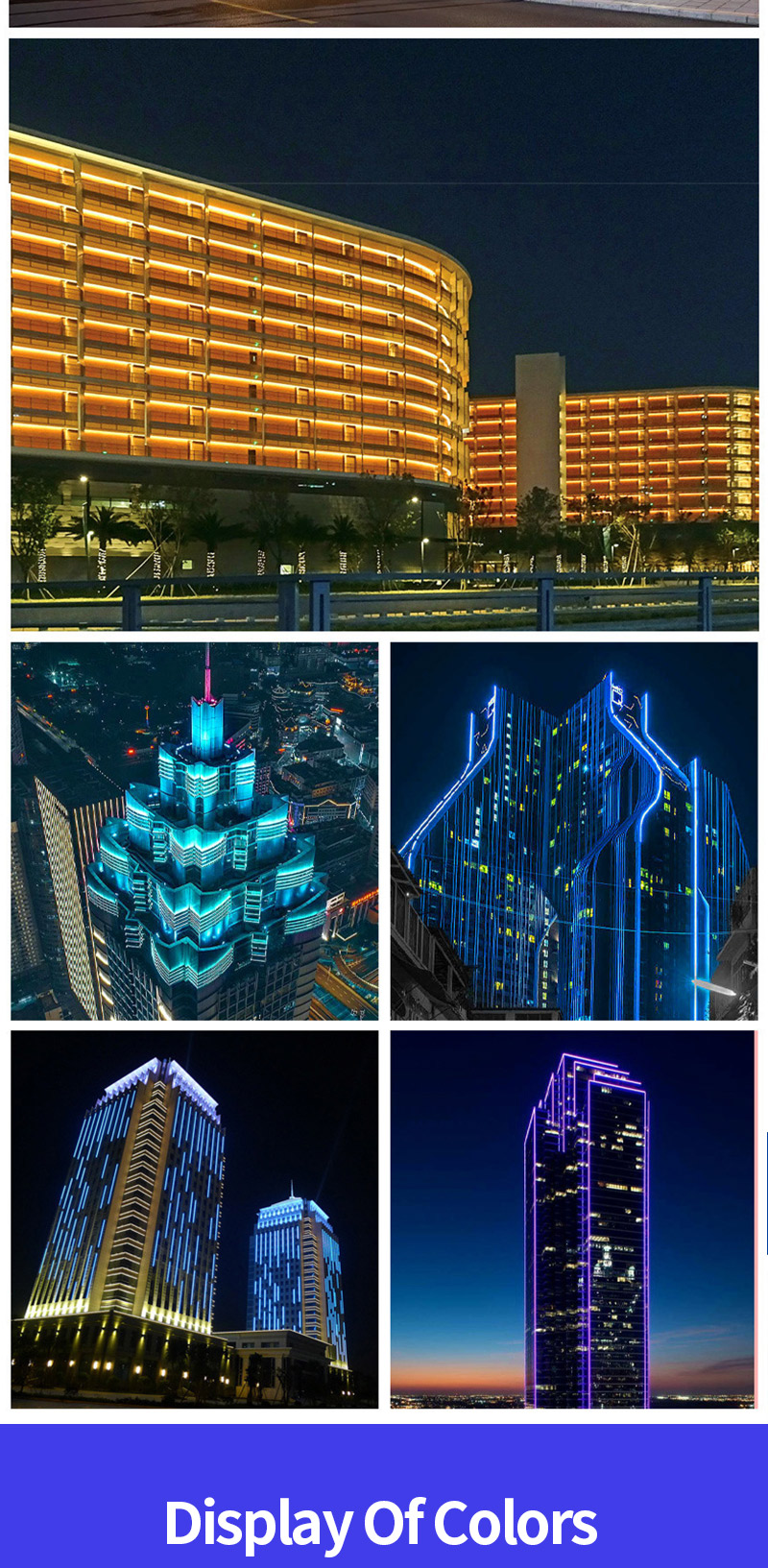

This LED pixel light is ideal for a wide range of professional applications, including building outlines, bridge, commercial signage, pixel displays, and creative stage backdrops, offering vibrant and customizable lighting solutions for both indoor and outdoor environments.

Installation Tips:

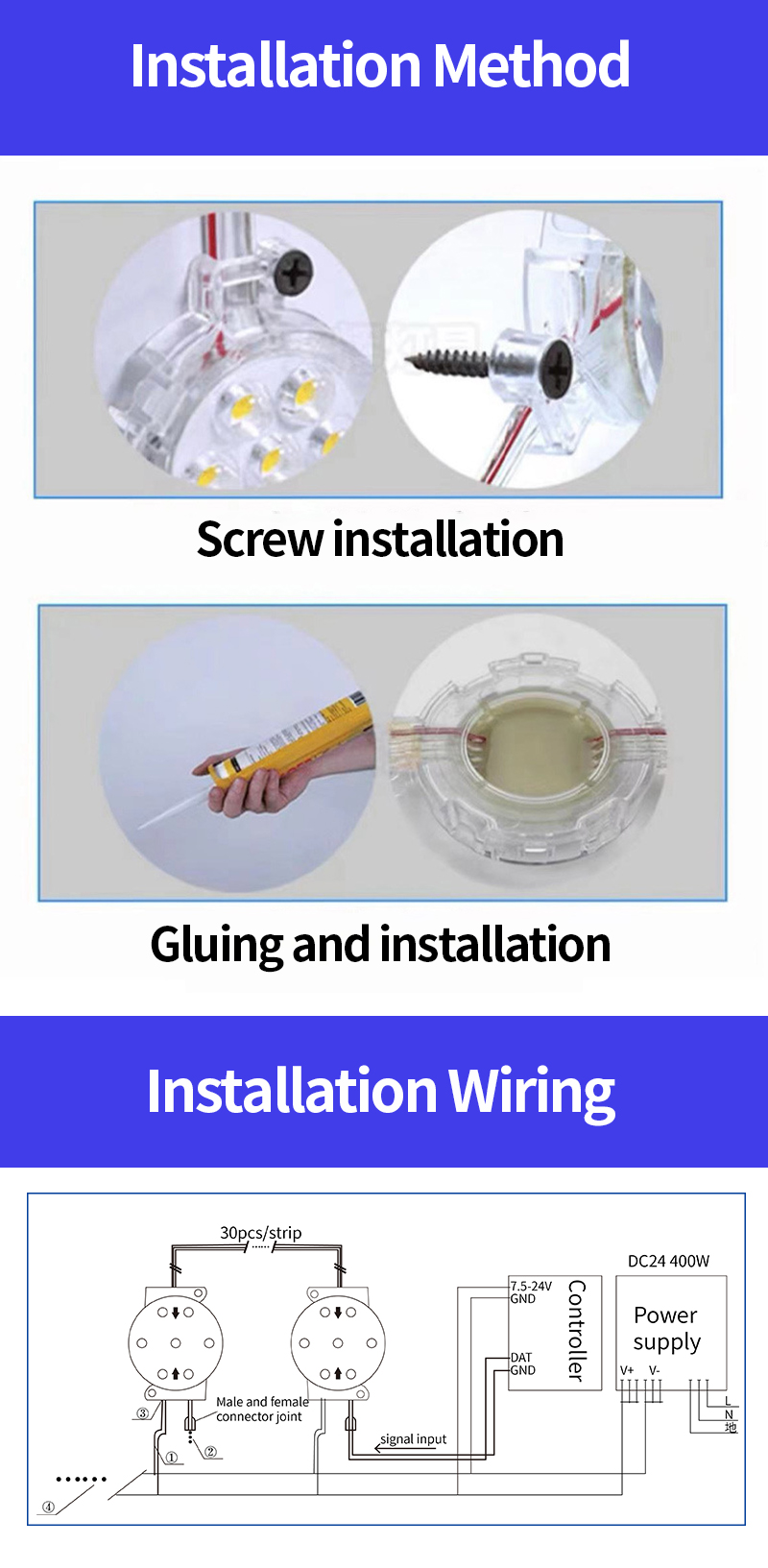

Mounting Methods:Choose the right fixing method based on the facade: track rail (for hidden wires & stability), wire rope clips (for glass curtain walls), or pre-drilled panels (for metal plates).

Electrical Connections:Identify the wires correctly: Red (V+), Black/ Grey (V-), and signal lines (Data, Clock). Ensure the signal input (IC chip side) connects to the controller.

Power Injection:To avoid voltage drop and uneven brightness, inject power every 20-30 lights using a thicker main power cable (1.5mm² or more). Don't rely on a single end connection for long runs.

Signal & Grounding:If lights flicker at the end of a long run, connect all power supplies' negative terminals (GND) together. This "common grounding" stabilizes the signal.

Waterproofing:For outdoor use, thoroughly waterproof all wire connections with high-quality self-amalgamating tape and insulation tape. Never leave exposed joints.

Power Budget:Always leave a 20% margin on your power supply. For example, a 240W supply comfortably runs around 400-500pcs (approx. 0.9W per light), ensuring safety and longevity.

FAQ:

1.Q：This product will be used outdoors. How reliable is its waterproofing?

A:Our LED pixel lights have an IP68 ingress protection rating. We use a fully encapsulated design with high-quality potting glue (or silicone) to protect the internal circuit from moisture and water ingress. This is crucial for long-term outdoor use. The connectors are also pre-waterproofed to ensure system stability.

2.Q：Can these lights be controlled individually to play videos or patterns?

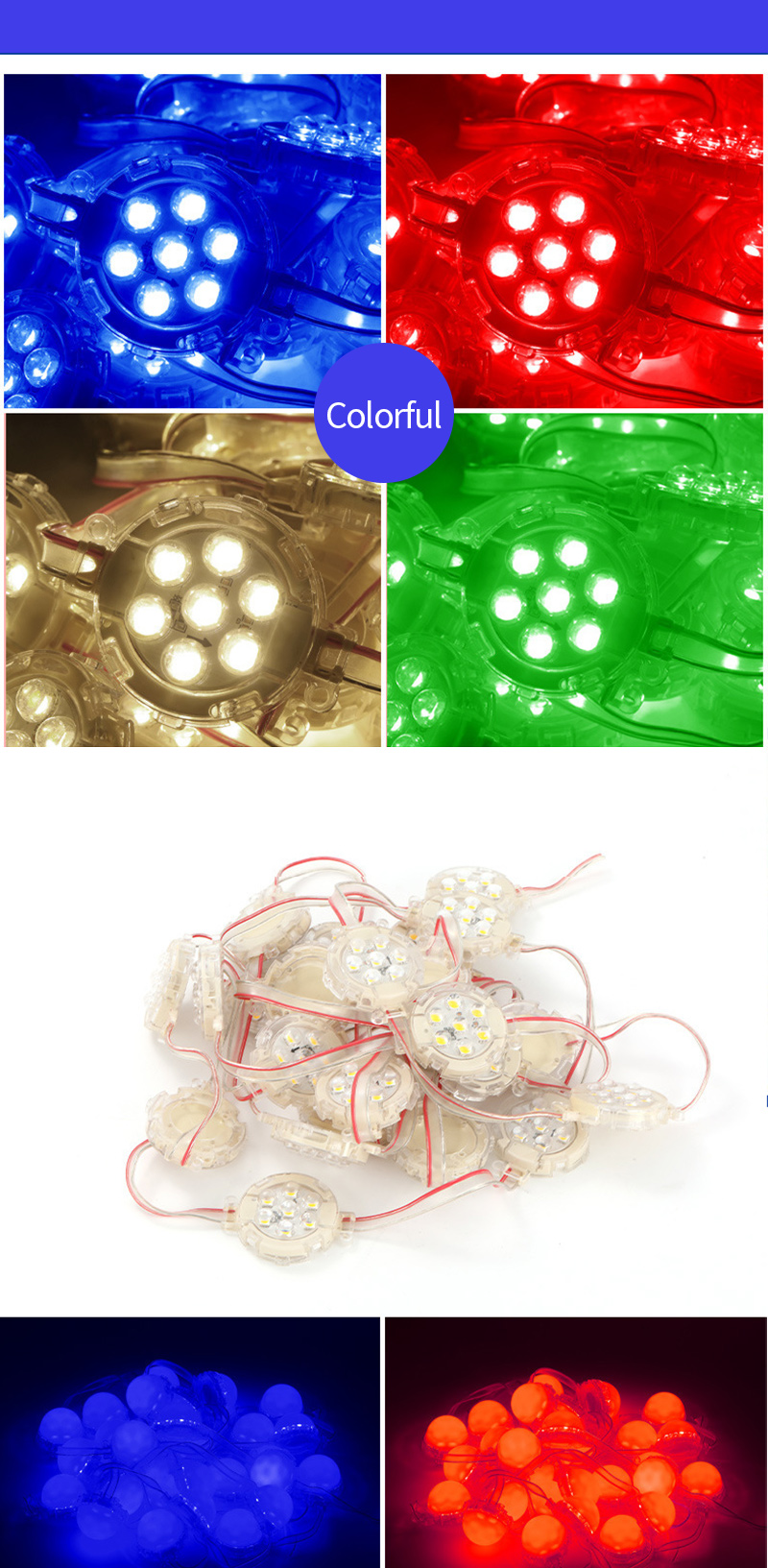

A：Yes, absolutely. These are full-color RGB pixel lights with individual pixel control, usually via a DMX512 or SPI protocol. They can be programmed to display text, images, and even videos across a large installation. We work with you to create the desired effect files based on your specific layout.

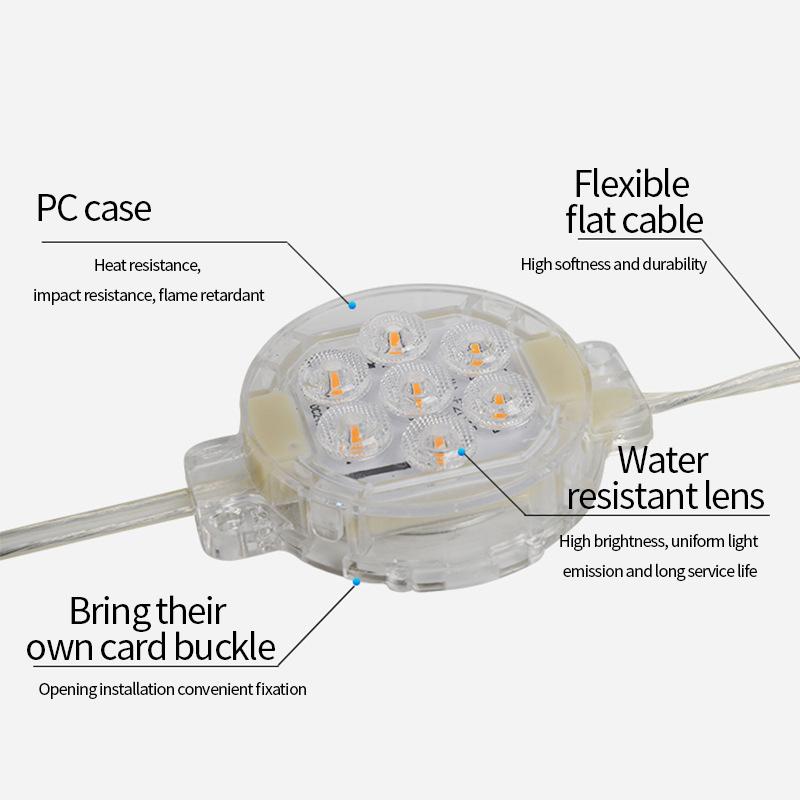

3.Q：Will the plastic cover turn yellow after being in the sun for a long time?

A：That's a very good question. The housing material is an important factor. We use a high-quality polycarbonate (PC) material with UV-resistant additives. This prevents the cover from yellowing and becoming brittle due to long-term sun exposure, ensuring the light maintains good light transmittance and a neat appearance for years.

4.Q：How many lights can one power supply handle?

A：The number depends on the power of each light and the power supply. For example, if each light is about 0.9W, a standard 240W power supply can safely and reliably drive around 400 to 500 units. We always recommend leaving a safety margin (like 80% load) for the power supply to ensure its longevity and stable operation.
